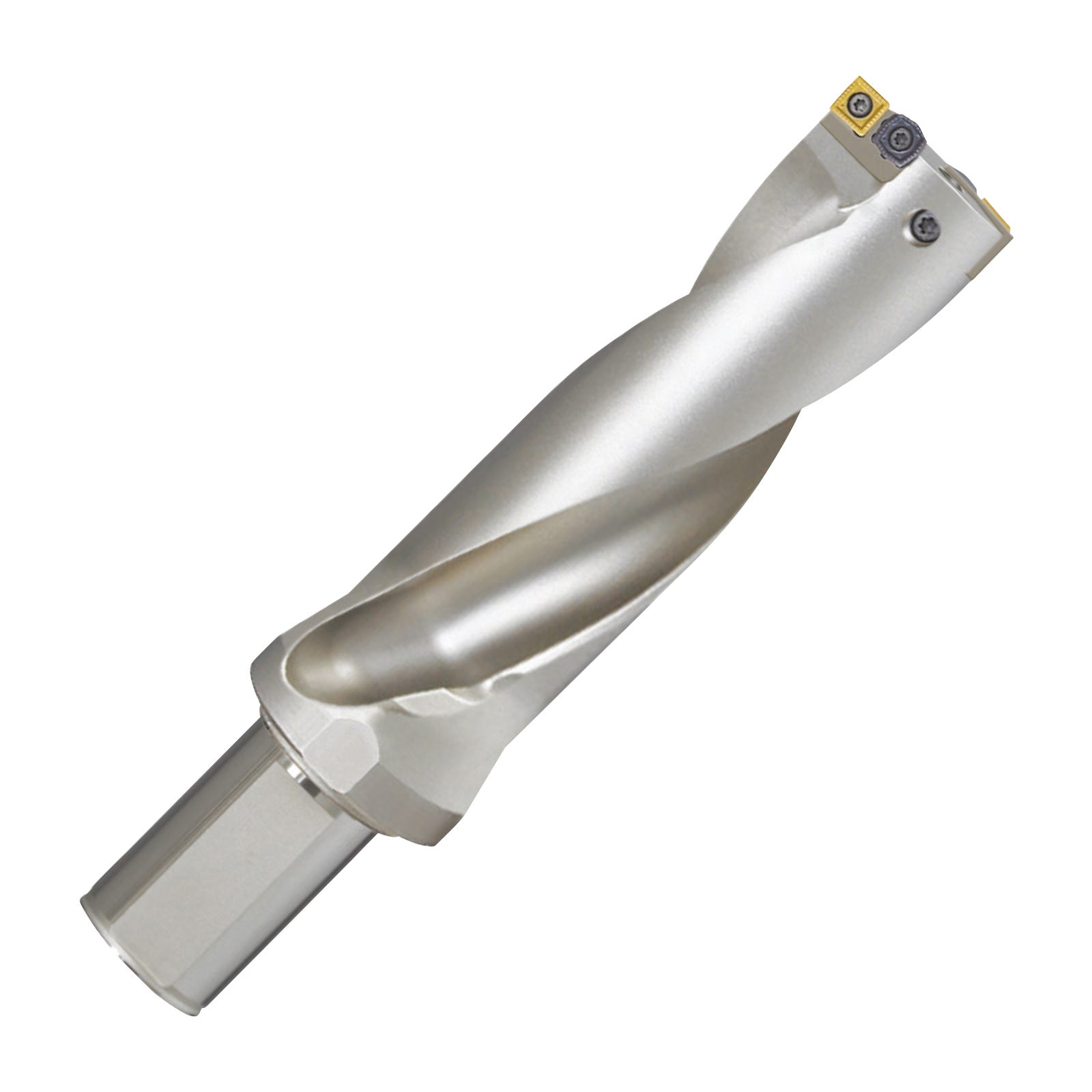

4xD King Drill XL Large Diameter Indexable U-Drill (Korloy)

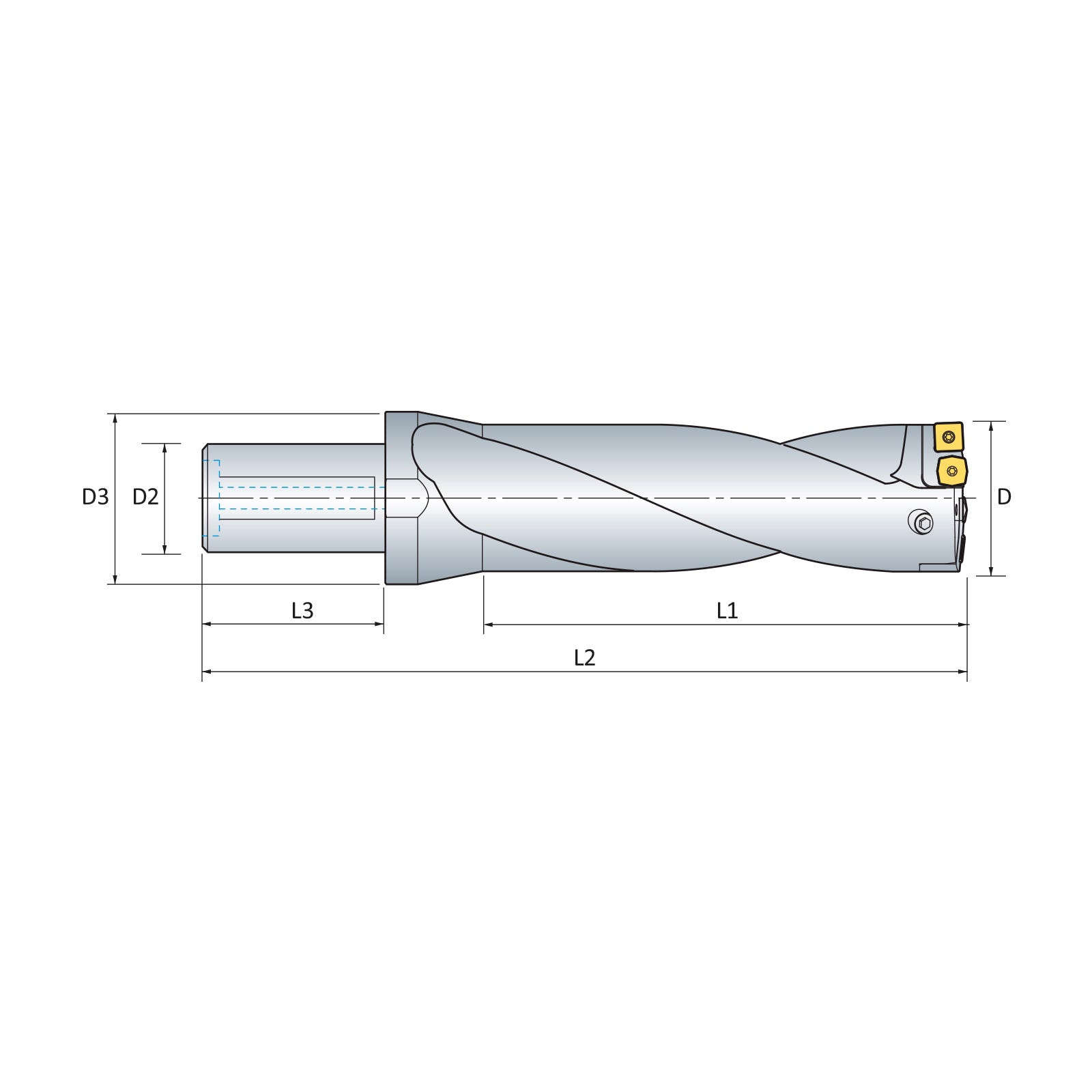

Shank (mm)
|
Diameter Range (mm)
|
Flute Length (mm)
|
Overall Length (mm)
|
D3
|
Shank Length
|
Central Inserts
|
Peripheral Inserts
|
||||
---|---|---|---|---|---|---|---|---|---|---|---|
Shank (mm): 50 | Diameter Range (mm): 61-65 | Flute Length (mm): 260 | Overall Length (mm): 385 | D3: 80 | Shank Length: 80 | Central Inserts: 2x XOMT/XOET11 | Peripheral Inserts: 2x SPMT/SPET11 |
12 days*
|
£1,022.64
£852.20
|
|
|
Shank (mm): 50 | Diameter Range (mm): 65-70 | Flute Length (mm): 280 | Overall Length (mm): 405 | D3: 88 | Shank Length: 80 | Central Inserts: 2x XOMT/XOET13 | Peripheral Inserts: 2x SPMT/SPET13 |
12 days*
|
£1,088.65
£907.21
|
|
|
Shank (mm): 50 | Diameter Range (mm): 70-75 | Flute Length (mm): 300 | Overall Length (mm): 425 | D3: 88 | Shank Length: 80 | Central Inserts: 2x XOMT/XOET13 | Peripheral Inserts: 2x SPMT/SPET13 |
12 days*
|
£1,120.43
£933.69
|
|
|
Shank (mm): 50 | Diameter Range (mm): 75-80 | Flute Length (mm): 320 | Overall Length (mm): 445 | D3: 88 | Shank Length: 80 | Central Inserts: 2x XOMT/XOET13 | Peripheral Inserts: 2x SPMT/SPET13 |
12 days*
|
£1,150.76
£958.97
|
|
|
Shank (mm): 50 | Diameter Range (mm): 80-85 | Flute Length (mm): 340 | Overall Length (mm): 465 | D3: 88 | Shank Length: 80 | Central Inserts: 2x XOMT/XOET15 | Peripheral Inserts: 2x SPMT/SPET15 |
12 days*
|
£1,193.15
£994.29
|
|
|
Shank (mm): 50 | Diameter Range (mm): 85-90 | Flute Length (mm): 360 | Overall Length (mm): 485 | D3: 95 | Shank Length: 80 | Central Inserts: 2x XOMT/XOET15 | Peripheral Inserts: 2x SPMT/SPET15 |
12 days*
|
£1,260.40
£1,050.33
|
|
|
Shank (mm): 50 | Diameter Range (mm): 90-95 | Flute Length (mm): 380 | Overall Length (mm): 505 | D3: 95 | Shank Length: 80 | Central Inserts: 2x XOMT/XOET15 | Peripheral Inserts: 2x SPMT/SPET15 |
In stock
|
£1,292.18
£1,076.82
|
|
Product Information
Features & Benefits
- Large diameter drilling from Ø61-Ø100mm
- Cartridge can adjust the drilling diameter by up to 5mm in 1mm increments
- Easy to adjust diameter with adjusting bolt & washers
- Tool holders available in 2xD, 3xD & 4xD maximum drill depths
- Optimised insert design for inner and outer pocket
- Inserts available in grades for steel, stainless steel, HRSA’s, cast iron, aluminium & plastics
- Exceptionally accurate drilling compared to other indexable drills even in deep holes
- High performance drilling of a wide range of materials
- Lower risk of tool failure
- Reduced insert wear
- Low cutting resistance
Specification
Performance | 5 |
---|---|
Through Coolant | Yes |
Brand | Korloy |
Applicable Materials | Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics |
Brand Range | King Drill |
Depth | 4xD |
