Gerardi Evolution Line Angle Heads
Interchangeable Drive Taper which enables the same angle head to be used in different machines
Gerardi Virutal Showroom

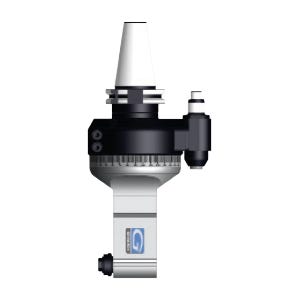

90° StandardEvolution Line Angle Heads
- Strong, fast & powerful
- Available in ER11-ER32 & ISO40

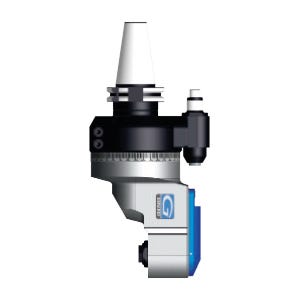

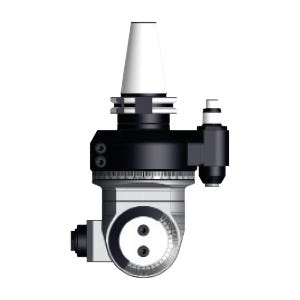

90° OffsetEvolution Line Angle Heads
- For smaller bores or cavities
- Available in ER16-ER32 & ISO40

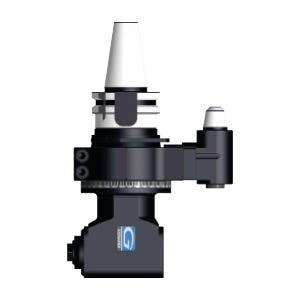

90° LightweightEvolution Line Angle Heads
- Lightweight aluminium housing
- Available in ER11-ER25
High machining speeds
Gerardi's Evolution Line angle heads feature an interchangeable Drive Taper which enables the same angle head to be used of different machines (e.g. BT or SK) simply by changing the input shaft.
ATC SeriesÂ
Designed for CNC machines with automatic tool change and can be automatically transferred from the tool store to the machine spindle and vice-versa. The orientation ring and arrester arm support ring are both 360° adjustable to allow the best angular orientation.Â
Â
MTC SeriesÂ
This range of angle heads is for conventional machines without automatic tool change. MTC angle heads (Manual Tool Change) are manually mounted on the machine headstock through a flange.Â
Features
High performance
Heavier duty
Modular shanks
High machining speeds
Exceptional tool life guaranteed
100% Italian Made
Supplied with 1 Year Warranty

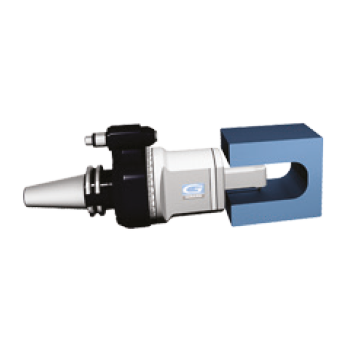

ATC SLIM Series
Ideal for micro-machining in narrow spaces.

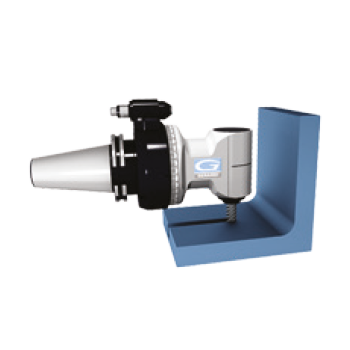

ATC F90 Series
Ideal for milling, drilling, tapping
at ±90.

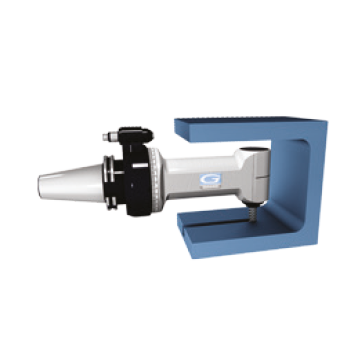

ATC F90L Series
Long series for deep machining applications.

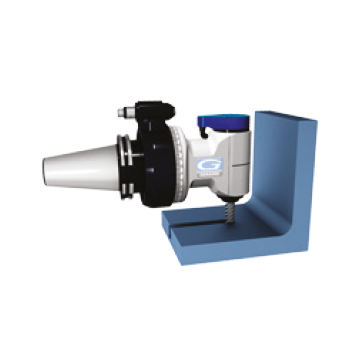

ATC F90 10BAR SeriesÂ
Coolant input from positioning pin and output through the tool.

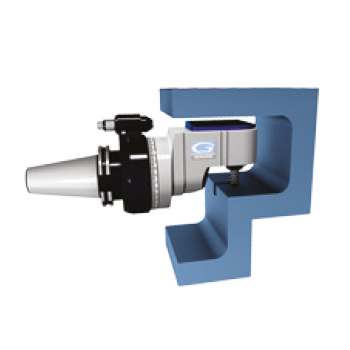

ATC FR90 70BAR Series
Offset series for machining in
narrow spaces.

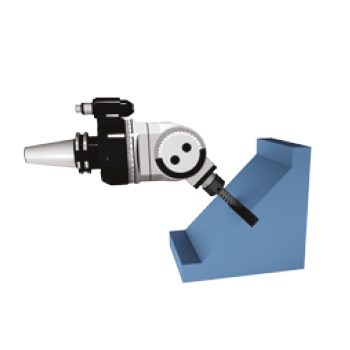

ATC FMU Series
Adjustable output at ±90° for tilt drilling, milling and tapping.

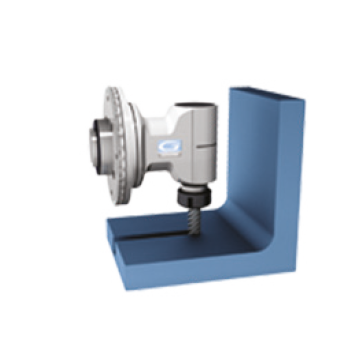

CMTC F90S Series
8.000RPM high speed angle head
with exceptional performance.

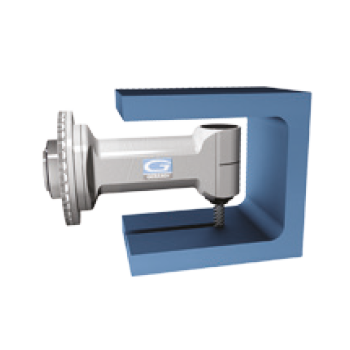

MTC F900L Series
High torque angle head for heavy
duty machining.
Accessories
Collets
ER-DIN 6499 / ET1
Nuts
ER-DIN 6499 / ET1
Wrench
ES (Exagonal)
STD (Standard)
Anti- Rotation Group
Composed by pin group, ring and shank group
Stop Block
Avoids the rotation of the angle head and ensures perfect stability, high precision
Pin Group
Positioning pin with through coolant to guarantee the correct pitch
Universal Flange
Used for the interface between the MTC angle head and the machine spindle
Extensions
Extend the length of MTC angle head bodies by adding an extension
