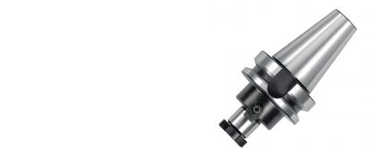

Face Mill Arbors

Face Mill Arbors

For general or performance indexable milling. Avaiulable in standard spigot drive, 4-bolt type or combination face mill arbor.

Filter By arrow
carrat-down

78 Items

Sort By
carrat-down
sort-descending

These face mill arbors from Haimer have a BT30 taper. They are used for holding face milling cutters securely in place. Made in Germany, this toolholder is supplied with a tightening bolt and provides...

  • BT30 taper
  • Chuck body fine balanced U < 1 gmm
  • All functional surfaces fine machined
  • Taper tolerance AT3
  • For holding face mill cutters and milling cutters
  • With tightening bolt
  • Made in Germany

From £141.78 £118.15

These face mill arbors from Haimer have a BT40 taper. They are used for holding face milling cutters securely in place. Made in Germany, this toolholder is supplied with a tightening bolt and provides...

  • BT40 taper
  • Chuck body fine balanced U < 1 gmm
  • All functional surfaces fine machined
  • Taper tolerance AT3
  • Coolant supply form JD/JF
  • For holding face mill cutters and milling cutters
  • With tightening bolt
  • Made in Germany

From £119.34 £99.45

These face mill arbors from Haimer have a BT50 taper. They are used for holding face milling cutters securely in place. Made in Germany, this toolholder is supplied with a tightening bolt and provides...

  • BT50 taper
  • Chuck body fine balanced G2.5 at 22000rpm
  • All functional surfaces fine machined
  • Taper tolerance AT3
  • Coolant supply form JD/JF
  • With coolant exit bores on the end face for milling cutters with central cooling
  • With tightening bolt
  • Made in Germany

From £200.94 £167.45

These face mill arbors from Haimer have a HSK100 taper. They are used for holding face milling cutters securely in place. Made in Germany, this toolholder is supplied with a tightening bolt and provid...

  • HSK100A taper
  • Chuck body fine balanced G2.5 at 25.000RPM or U < 1 gmm
  • All functional surfaces fine machined
  • More accurate than DIN
  • With coolant exit bores on the end face for milling cutters with central cooling
  • Supplied with tightening bolt without coolant tube
  • Made in Germany

From £250.92 £209.10

These face mill arbors from Haimer have a HSK40 taper. They are used for holding face milling cutters securely in place. Made in Germany, this toolholder is supplied with a tightening bolt and provide...

  • HSK40A taper
  • Chuck body fine balanced U < 1 gmm
  • All functional surfaces fine machined
  • More accurate than DIN
  • With coolant exit bores on the end face for milling cutters with central cooling
  • Supplied with tightening bolt without coolant tube
  • Made in Germany

From £153.00 £127.50

These face mill arbors from Haimer have a HSK50A taper. They are used for holding face milling cutters securely in place. Made in Germany, this toolholder is supplied with a tightening bolt and provid...

  • HSK50A taper
  • Chuck body fine balanced G2.5 at 25.000RPM or U < 1 gmm
  • All functional surfaces fine machined
  • More accurate than DIN
  • With coolant exit bores on the end face for milling cutters with central cooling
  • Supplied with tightening bolt without coolant tube
  • Made in Germany

From £202.98 £169.15

These face mill arbors from Haimer have a HSK50E taper. They are used for holding face milling cutters securely in place. Made in Germany, this toolholder is supplied with a tightening bolt and provid...

  • HSK50E taper
  • Chuck body fine balanced G2.5 at 25.000RPM or U < 1 gmm
  • All functional surfaces fine machined
  • More accurate than DIN
  • With coolant exit bores on the end face for milling cutters with central cooling
  • Supplied with tightening bolt without coolant tube
  • Made in Germany

From £202.98 £169.15

These face mill arbors from Haimer have a HSK63/80A taper. They are used for holding face milling cutters securely in place. Made in Germany, this toolholder is supplied with a tightening bolt and pro...

  • HSK63/80A taper
  • Chuck body fine balanced G2.5 at 25.000RPM or U < 1 gmm
  • All functional surfaces fine machined
  • More accurate than DIN
  • Supplied with tightening bolt without coolant tube
  • Made in Germany

From £199.92 £166.60

These combination type face mill arbors from Haimer have a HSK63A taper. They are used for clamping shell end mills as well as angular milling cutters. Made in Germany, this toolholder is supplied wit...

  • HSK63A taper
  • Chuck body fine balanced G2.5 at 25.000RPM or U < 1 gmm
  • All functional surfaces fine machined
  • More accurate than DIN
  • Supplied with tightening bolt, driving ring and feather key
  • Without coolant tube
  • Made in Germany

From £183.60 £153.00

These face mill arbors from Haimer have a HSK63A taper. They are used for holding face milling cutters securely in place. Made in Germany, this toolholder is supplied with a tightening bolt and provid...

  • HSK63A taper
  • Chuck body fine balanced G2.5 at 25.000RPM
  • All functional surfaces fine machined
  • More accurate than DIN
  • Supplied with tightening bolt
  • Without coolant tube
  • Made in Germany

From £202.98 £169.15

These face mill arbors from Haimer have a HSK63F taper. They are used for holding face milling cutters securely in place. Made in Germany, this toolholder is supplied with a tightening bolt and provid...

  • HSK63F taper
  • Chuck body fine balanced G2.5 at 25.000RPM
  • All functional surfaces fine machined
  • More accurate than DIN
  • Supplied with tightening bolt
  • Without coolant tube
  • Made in Germany

From £228.48 £190.40

These face mill arbors from Haimer are for holding face milling cutters securely in place. Made in Germany, this toolholder is supplied with a tightening bolt and provides accurate and efficient machi...

  • Interface with a unique tapered polygon and flange location face
  • Chuck body fine balanced G2.5 at 25.000RPM or U<1gmm
  • All functional surfaces fine machined
  • More accurate than DIN
  • Exact positioning in the circumferential direction
  • Supplied with tightening bolt
  • Innovative modular tool system with highest precision
  • Highest runout accuracy, torque and rigidity
  • With coolant exit bores on the end face for milling cutters with central cooling
  • Made in Germany

From £325.38 £271.15

These combination type face mill arbors from Haimer have a SK40 taper. They are used for clamping shell end mills as well as angular milling cutters. Made in Germany, this toolholder is supplied with ...

  • SK40 (DIN69871) taper
  • Chuck body fine balanced G2.5 at 22.000RPM
  • All functional surfaces fine machined
  • Coolant supply form AD/AF
  • Taper tolerance AT3
  • Supplied with tightening bolt, driving ring and feather key
  • Made in Germany

From £132.60 £110.50

These face mill arbors from Haimer have a SK40 taper. They are used for holding face milling cutters securely in place. Made in Germany, this toolholder is supplied with a tightening bolt and provides...

  • SK40 (DIN69871) taper
  • Chuck body fine balanced G2.5 at 22.000RPM
  • All functional surfaces fine machined
  • Taper tolerance AT3
  • With coolant exit bores on the end face for milling cutters with central cooling
  • Supplied with tightening bolt
  • Made in Germany

From £127.50 £106.25

YG-1 Premium Line Face Mill Arbors are through coolant with a SK30 connection. They are provided with a AT3 taper tolerance for highest spindle rigidity. They come balanced to 15,000RPM G6.3, making t...

  • SK30 Face Mill Arbor (50mm Long)
  • Balanced to 15,000RPM G6.3
  • Suitable for high speed face milling
  • AD Coolant Type

From £40.19 £33.49

YG-1 Premium Line Face Mill Arbors are through coolant with a SK40 connection. They are provided with a AT3 taper tolerance for highest spindle rigidity. They come balanced to 15,000RPM G6.3, making t...

  • SK40 Face Mill Arbor (60mm Long)
  • Balanced to 15,000RPM G6.3
  • Suitable for high speed face milling
  • Ideal for clamping of end face mills and face mills, suitable for milling applications
  • Additional sizes and customized designs are available upon request
  • A Coolant Type

From £40.57 £33.81

YG-1 Premium Line Face Mill Arbors are through coolant with a SK50 connection. They are provided with a AT3 taper tolerance for highest spindle rigidity. They come balanced to 15,000RPM G6.3, making t...

  • SK50 Face Mill Arbor (75mmm Long)
  • Balanced to 15,000RPM G6.3
  • Suitable for high speed face milling
  • AD Coolant Type

From £78.18 £65.15

HSK-A YG-1 Premium Line Face Mill Arbors are through coolant with a HSK40A connection. They are constructed with high-quality materials which contribute to its durability and reliability, making it a...

  • HSK40A Face Mill Arbor
  • Balanced to 15,000RPM G6.3
  • Suitable for high speed face milling
  • AD Coolant Type

From £60.72 £50.60

HSK-A YG-1 Premium Line Face Mill Arbors are through coolant with a HSK50A connection. They are constructed with high-quality materials which contribute to its durability and reliability, making it a...

  • HSK50A Face Mill Arbor
  • Balanced to 15,000RPM G6.3
  • Suitable for high speed face milling
  • AD Coolant Type

From £75.84 £63.20

HSK-A YG-1 Premium Line Face Mill Arbors are through coolant with a HSK63A connection. They are constructed with high-quality materials which contribute to its durability and reliability, making it a...

  • HSK63A Face Mill Arbor
  • Balanced to 15,000RPM G6.3
  • Suitable for high speed face milling
  • Ideal for clamping of end face mills and face mills, suitable for milling applications
  • Additional sizes and customized designs are available upon request
  • A Coolant Type

From £86.70 £72.25

HSK-A YG-1 Premium Line Face Mill Arbors are through coolant with a HSK100A connection. They are constructed with high-quality materials which contribute to its durability and reliability, making it ...

  • HSK100A Face Mill Arbor
  • Balanced to 15,000rpm G6.3
  • Suitable for high speed face milling
  • AD Coolant Type

From £105.17 £87.64

Dual contact YG-1 Premium Line Face Mill Arbors are through coolant with a CBT30 connection. They are constructed with high-quality materials which contribute to its durability and reliability, making...

  • CBT30 Dual Contact Face Mill Arbor (30mm Long)
  • Balanced to 25,000RPM G2.5
  • Suitable for high speed face milling
  • AD Coolant Type

From £71.89 £59.91

Dual contact YG-1 Premium Line Face Mill Arbors are through coolant with a CBT40 connection. They are constructed with high-quality materials which contribute to its durability and reliability, making...

  • CBT40 Dual Contact Face Mill Arbor (60mm Long)
  • Balanced to 25,000RPM G2.5
  • Suitable for high speed face milling
  • AD Coolant Type

From £72.32 £60.27

Dual contact YG-1 Premium Line Face Mill Arbors are through coolant with a CBT50 connection. They are constructed with high-quality materials which contribute to its durability and reliability, making...

  • CBT50 Dual Contact Face Mill Arbor (75mm Long)
  • Balanced to 25,000RPM G2.5
  • Suitable for high speed face milling
  • AD Coolant Type

From £129.19 £107.66

YG-1 Premium Line Face Mill Arbors are through coolant with a BT30 connection. They are constructed with high-quality materials which contribute to its durability and reliability, making it a dependab...

  • BT30 Face Mill Arbor
  • Balanced to 15,000RPM G6.3
  • Suitable for high speed face milling
  • AD Coolant Type

From £42.12 £35.10
