i-Dream Drill
Next generation high precision drill designed for accuracy and consistency
Ideal for high performance cost effective medium-large batch machining.
P
M
K
N
Browse the Range

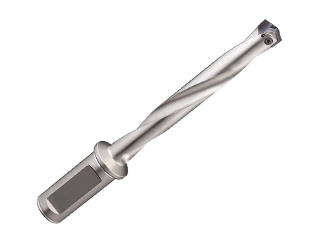

i-Dream Drill
Holders
- High performance drilling from 12mm-31.75mm
- Each holder can drill a variety of diameters
- Holders available in 3xD, 5xD and 7xD

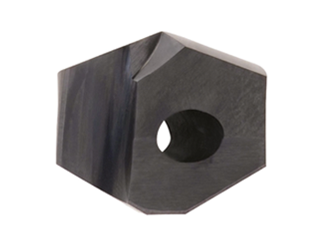

i-Dream Drill
Inserts
- Dedicated inserts for high performance drilling
- Self centring with advanced drill point technology
- Can be changed while the tool is in the machine
Advantages
Designed for Accuracy
Precision ground carbide inserts with advanced drill point technology.
0.1mm Increments
Metric inserts available in 0.1mm increments. Imperial also available.
Cost Effective
Centering, reaming and boring operations are eliminated.
High Rigidity
Strong clamping gives rigidity in powerful drilling operations.
Features
Wide Range of Sizes
Inserts available in both metric and imperial diameters.
Multi-Material
Insert grades to cover a wide range of materials.
Versatile Diameters
Each holder can drill a variety of diameters.
Self Centering Inserts
For extremely accurate drilling even in deep holes.

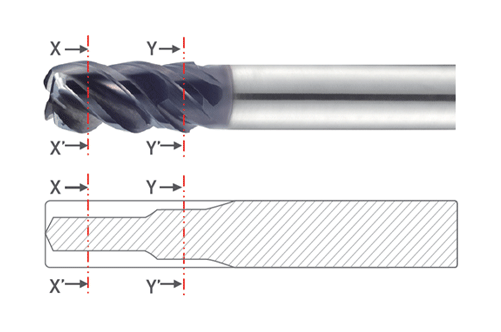

Double Core Geometry
GMG40 & GMG41 Series
UNIQUE FLUTE DESIGN for excellent chip evacuation and higher rigidity. Adds stability, aids chip flow and prevents flute clogging in sticky metals.
Section X-X'
Excellent chip evacuation
Section Y-Y'
Higher Rigidity
Application
Material Suitability
| Material | Excellent | Good |
|---|---|---|
|
P
Steel
|
• | • |
|
H
Hardened Steel
|
• | • |
|
M
Stainless Steel
|
• | • |
|
S
HRSA's
|
• | • |
|
K
Cast Iron
|
• | • |
|
N
Aluminium & Non-Ferrous
|
• | • |
Possible Machining Methods
Face Milling
Trochoidal Milling
Side Cutting
Slotting
Circular Interpolation
Example Cutting Data
| Ø12mm, 4 Flute Double Core Slotting - Titanium (Ti6Al4V) |
Ø12mm, 4 Flute Double Core Slotting - Stainless Steel (316) |
Ø12mm, 4 Flute Double Core Slotting - Alloy Steel (30 HRC) |
Ø12mm, 5 Flute Corner Rad Side Cutting - Stainless Steel (316) |
|
|---|---|---|---|---|
| RPM | 1459 | 2255 | 3185 | 2175 |
| Feed (mm/min) | 390 | 432 | 624 | 685 |
| Vc (m/min) | 55 | 85 | 120 | 82 |
| Fz (mm/tooth) | 0.067 | 0.048 | 0.049 | 0.063 |
| Depth of Cut (AP) | 12 | 12 | 12 | 18 |
| Depth of Cut (AE) | 12 | 12 | 12 | 3.6 |
