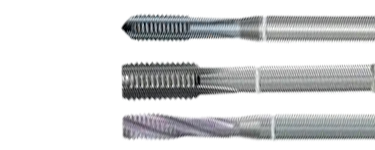

Cast Iron Metric Coarse Machine Taps

Cast Iron Metric Coarse Machine Taps

Powder Metal & HSS metric coarse taps with special geometries for tapping cast iron, bronze & aluminium. Ranges include high strength taps and short lead taps for thin wall components.

Filter By arrow
carrat-down

8 Items

Sort By
carrat-down
sort-descending
Metric Coarse Powder Metal Straight Flute Machine Tap for Cast Iron - K26/K27M-TX Series (UFS)
Metric Coarse Powder Metal Straight Flute Machine Tap for Cast Iron - K26/K27M-TX Series (UFS)

The UFS K26/K27M-TX series Metric Coarse Cast Iron Machine Taps are suitable for ultra high performance tapping of grey, nodular and malleable cast iron, short chipping copper alloys, graphite, highly...

  • Metric Coarse Machine Tap for Cast Iron
  • High Performance Powder Metal Substrate
  • Straight Flute for Through & Blind Holes
  • TiAlN Coated
  • Suitable for Grey, Nodular and Malleable Cast Iron, Short Chipping Copper alloys, Graphite, Highly Abasive Aluminium and Magnesium Alloys

Size

Overall Length (mm)63 - 110
Flute Length (mm)13 - 28
Shank (mm)4.5 - 12

From £18.54 £15.45

View Products
Metric Coarse Powder Metal Spiral Flute TiCN Coated Machine Tap for Cast Iron - K28/K29-CT Series (UFS)
Metric Coarse Powder Metal Spiral Flute TiCN Coated Machine Tap for Cast Iron - K28/K29-CT Series (UFS)

The UFS K28/K29M-CT series Metric Coarse Cast Iron Machine Taps are designed for tapping nodular and malleable cast iron and high strength alloy steeels. They come with a TiCN coating, high performanc...

  • Metric Coarse Machine Tap for Cast Iron
  • High Performance Powder Metal Substrate
  • Spiral Flute for Blind Holes
  • TiCN Coated
  • Suitable for Nodular and Malleable Cast Iron and High Strength Alloy Steel

Size

Overall Length (mm)63 - 110
Flute Length (mm)13 - 28
Shank (mm)4.5 - 12

From £26.98 £22.48

View Products
Metric Coarse HSS 5% Cobalt Straight Flute Machine Tap for Cast Iron -TE821 Series (YG-1)
Metric Coarse HSS 5% Cobalt Straight Flute Machine Tap for Cast Iron -TE821 Series (YG-1)

The YG-1 TE821 series Metric Coarse Cast Iron Machine Taps are suitable for tapping grey cast iron, short chipping brass/bronze and GFRP/CFRP. They come with a NI (Nitrided Finish), HSS 5% cobalt subs...

  • Metric Coarse Machine Tap for Cast Iron
  • HSS 5% Cobalt Substrate
  • Straight Flute for Through & Blind Holes
  • NI (Nitrided Finish)
  • Suitable for Grey Cast Iron, Short Chipping Bras/Bronze and GFRP/CFRP

Size

Overall Length (mm)45 - 160
Flute Length (mm)8 - 34
Shank (mm)2.8 - 18

From £13.18 £10.98

View Products
Metric Coarse HSS 5% Cobalt Straight Flute TiAlN Coated Machine Tap for Cast Iron -TY821 Series (YG-1)
Metric Coarse HSS 5% Cobalt Straight Flute TiAlN Coated Machine Tap for Cast Iron -TY821 Series (YG-1)

The YG-1 TY821 series Metric Coarse Cast Iron Machine Taps are suitable for tapping grey cast iron, short chipping brass/bronze and GFRP/CFRP. They come with a TiAlN coating, HSS 5% cobalt substrate a...

  • Metric Coarse Machine Tap for Cast Iron
  • HSS 5% Cobalt Substrate
  • Straight Flute for Through & Blind Holes
  • TiAlN Coated
  • Suitable for Grey Cast Iron, Short Chipping Bras/Bronze and GFRP/CFRP

Size

Overall Length (mm)45 - 160
Flute Length (mm)8 - 34
Shank (mm)2.8 - 18

From £21.24 £17.70

View Products
Metric Coarse Powder Metal Straight Flute TXS Coated Machine Tap for ADI Cast Iron - K26/K27EM-TXS Series (UFS)
Metric Coarse Powder Metal Straight Flute TXS Coated Machine Tap for ADI Cast Iron - K26/K27EM-TXS Series (UFS)

The UFS K26/K27M-TXS series Metric Coarse Cast Iron Machine Taps have a special TXS coating which is highly wear resistant, making these perfect for ADI (austempered ductile iron). They are also suita...

  • Metric Coarse Machine Tap for Cast Iron
  • High Performance Powder Metal Substrate
  • Straight Flute for Through & Blind Holes
  • TiAlN Coated
  • Suitable for Grey, Nodular and Malleable Cast Iron, Short Chipping Copper alloys, Graphite, Highly Abasive Aluminium and Magnesium Alloys

Size

Overall Length (mm)63 - 110
Flute Length (mm)13 - 28
Shank (mm)4.5 - 12

From £29.53 £24.61

View Products
Metric Coarse Powder Metal Straight Flute Machine Tap With E Form Chamfer for Cast Iron - K26/K27EM-TX Series (UFS)
Metric Coarse Powder Metal Straight Flute Machine Tap With E Form Chamfer for Cast Iron - K26/K27EM-TX Series (UFS)

The UFS K26/K27EM-TX series Metric Coarse Cast Iron Machine Taps are suitable for ultra high performance tapping of grey, nodular and malleable cast iron, short chipping copper alloys, graphite, highl...

  • Metric Coarse Machine Tap for Cast Iron
  • High Performance Powder Metal Substrate
  • Straight Flute for Through & Blind Holes
  • TiAlN Coated
  • Suitable for Grey, Nodular and Malleable Cast Iron, Short Chipping Copper alloys, Graphite, Highly Abasive Aluminium and Magnesium Alloys
  • The E Form Chamfer (1.5-2 thread lead) make these ideal for machining short holes or thin plate materials.

Size

Overall Length (mm)80 - 110
Flute Length (mm)16 - 28
Shank (mm)6 - 12

From £32.47 £27.06

View Products
Metric Coarse Powder Metal Straight Flute Machine Tap With Axial Through Coolant for Cast Iron - K26/K27M-FOR-TX Series (UFS)
Metric Coarse Powder Metal Straight Flute Machine Tap With Axial Through Coolant for Cast Iron - K26/K27M-FOR-TX Series (UFS)

The UFS K26/K27M-FOR-TX series Metric Coarse Cast Iron Machine Taps are suitable for ultra high performance tapping of grey, nodular and malleable cast iron, short chipping copper alloys, graphite, hi...

  • Metric Coarse Machine Tap for Cast Iron
  • High Performance Powder Metal Substrate
  • Straight Flute for Through & Blind Holes
  • TiAlN Coated
  • Suitable for Grey, Nodular and Malleable Cast Iron, Short Chipping Copper alloys, Graphite, Highly Abasive Aluminium and Magnesium Alloys
  • Axial Through Coolant Improves Performance in Blind Holes

Size

Overall Length (mm)80 - 110
Flute Length (mm)16 - 28
Shank (mm)6 - 12

From £50.17 £41.81

View Products
Metric Coarse Powder Metal Straight Flute Machine Tap With Radial Through Coolant for Cast Iron - K26/K27M-FORY-TX Series (UFS)
Metric Coarse Powder Metal Straight Flute Machine Tap With Radial Through Coolant for Cast Iron - K26/K27M-FORY-TX Series (UFS)

The UFS K26/K27M-FORY-TX series Metric Coarse Cast Iron Machine Taps are suitable for ultra high performance tapping of grey, nodular and malleable cast iron, short chipping copper alloys, graphite, h...

  • Metric Coarse Machine Tap for Cast Iron
  • High Performance Powder Metal Substrate
  • Straight Flute for Through & Blind Holes
  • TiAlN Coated
  • Suitable for Grey, Nodular and Malleable Cast Iron, Short Chipping Copper alloys, Graphite, Highly Abasive Aluminium and Magnesium Alloys
  • Radial Through Coolant Improves Performance in Through Holes

Size

Overall Length (mm)63 - 110
Flute Length (mm)13 - 28
Shank (mm)4.5 - 12

From £26.98 £22.48

View Products
