V7 Plus 4 Flute HPC Milling Cutters
The Ultimate High Performance All-Rounder
1st choice for cutting a wide range of materials with high metal removal rates & exceptional tool life.
★★★★★
P
M
S
K
 Browse the Range
Advantages
1 Tool - Many Applications
Removes the need for multiple tools for roughing, finishing, slotting or profiling
Guaranteed Tool Life
Vibration free geometry & advanced coating ensures exceptional tool life
High Metal Removal
Large depths of cut with agressive feed rates ensures excellent metal removal
Multi Material
The best high performance all-rounder for steel, stainless, titanium, inconel and cast milling
Features
Multiple Helix
Vibration free milling due to multiple helix geometry
Unequal Flute Spacing
Improved harmonics and stability reduce chatter for an excellent finish
Heat Resistant Coating
Special Y1200 high heat resistance coating up to 1,200°C
Ultrafine Carbide
High performance premium ultrafine micrograin carbide

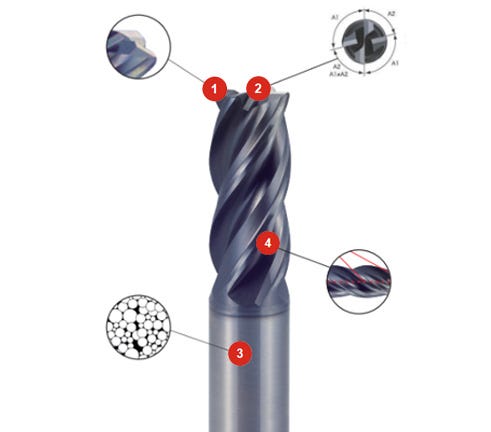

V7 Plus 4 Flute HPC
1
Corner Geometries
Longer tool life with higher cutting speed and heavy cutting
2
Unequal Index
Reduce vibration and achieve excellent chip evacuation with better surface finish
3
Ultra Micrograin Carbide
Provides exceptional wear resistance
4
Multiple Helix
Optimal chip formation and chip evacuation, provides faster and heavier cutting which leads to higher productivity
1
Corner Geometries
Longer tool life with higher cutting speed and heavy cutting
2
Unequal Index
Reduce vibration and achieve excellent chip evacuation with better surface finish
3
Ultra Micrograin Carbide
Provides exceptional wear resistance
4
Multiple Helix
Optimal chip formation and chip evacuation, provides faster and heavier cutting which leads to higher productivity
Application
Material Suitability
| Material | Excellent | Good |
|---|---|---|
|
P
Steel*
|
• | • |
|
H
Hardened Steel
|
• | • |
|
M
Stainless Steel
|
• | • |
|
S
HRSA's
|
• | • |
|
K
Cast Iron
|
• | • |
|
N
Aluminium & Non-Ferrous
|
• | • |
*Up to 40HRC
Possible Machining Methods
Profiling
Slotting
Ramping
Face Milling
Shoulder Milling
Circular Interpolation
Example Cutting Data
 The V7 PLUS 4 flute range can be used for both end milling and side cutting with the most aggressive combination on large cut depths and feed rates. The chamfer corner preparation prevents the cutting edge from chipping.
| Ø8mm, 4 Flute, GMF52080 Slotting - Low Carbon Steel HRC20 |
Ø8mm, 4 Flute, GMF52080 Slotting - Stainless Steel (316) |
Ø8mm, 4 Flute, GMF52080 Slotting - Titanium |
Ø8mm, 4 Flute, GMF52080 Slotting - Inconel (718) |
|
|---|---|---|---|---|
| RPM | 6048 | 4576 | 3223 | 1223 |
| Feed (mm/min) | 653 | 512 | 322 | 151 |
| Vc (m/min) | 152 | 115 | 81 | 31 |
| Fz (mm/tooth) | 0.027 | 0.028 | 0.025 | 0.031 |
| Depth of Cut (AP) | 8 | 8 | 4 | 4 |
| Depth of Cut (AE) | 8 | 8 | 8 | 8 |
